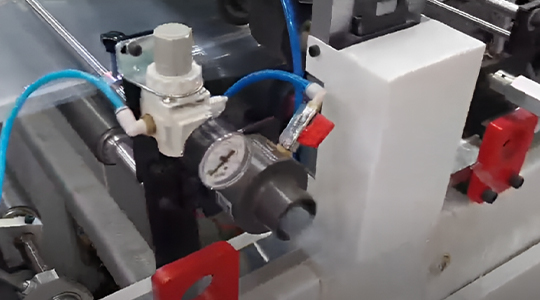

Compact Standup Pouch Machine

This machine is made with a focus on engineering ingenuity, high quality production standards and international standard components to consistently achieve high production speeds. The standup pouch maker is designed to convert laminated film into standup and three side seal pouches.

This 400mm wide machine is designed to be a value machine for our customers, specifically for jobs in the pouch width range of 100-400mm.

Various attachments such as Insert Mother Film, Insert Gusset, Punches, Round Corner Cut and more, can be equipped with this machine.

Technical Details
Model VELOS 420SP
Speed (cycles/min) 150
TECHNICAL SPECIFICATION
Three Side Seal pouch 1 to 2 Lane Operations
50mm to 400mm (W) x 100mm to 400mm (H)
Three Side Seal Pouch with Zipper 1 to 2 Lane Operations
50mm to 400mm (W) x 100mm to 400mm (H)
Standup Pouch 1 to 2 Lane Operations
80mm to 200mm (W) x 100mm to 400mm (H) x 50mm to 120mm (Open Gusset) Max
Standup Pouch with Zipper 1 to 2 Lane Operations
80mm to 200mm (W) x 100mm to 400mm (H) x 50mm to 120mm (Open Gusset) Max
5 Side Seal with Side Gusset Pouch Single Lane Operations 150mm to 400mm (W) x 150mm to 600mm (H) x 50mm to 120mm (Open Gusset) Max
Vacuum Pouches (PA+PE only) 1 to 2 Lane Operations
50mm to 400mm (W) x 100mm to 400mm (H); UPTO 800mm (H) with Skip Function
OPERATION CONFIGURATION
Maximum Operating Web roll Diameter 600mm
Maximum Cutting Length 400mm x 1 skip for longer pouches Upto 800mm
Minimum Cutting Length 50mm
Maximum Primary Unwinder Roll Width 800mm (without five side seal option) /
1200mm (with five side seal option)
Minimum Primary Unwinder Roll Width 300mm
Film Thickness Range 60 microns - 150 microns
BUYERS SCOPE
Compressed Air 30 CFM @ 6 Bar
Chilled Water 6 to 8 liters/min at 2 Bar @ 12C to 18C
Electric Power Supply AC/3-Phase/415 V/50Hz
Connected Load Basic M/C (Kw) 40
Earthing Connections One for Panel and One for Machine Body
